中华关节外科杂志(电子版) ›› 2026, Vol. 20 ›› Issue (01) : 116 -121. doi: 10.3877/cma.j.issn.1674-134X.2026.01.015

临床经验

股骨远端骨折-脱位新分类系统的提出以及临床建议
章建雄, 吴正豪, 乐佳迪, 陈龙()
  1. 325026 温州医科大学附属第二医院
  • 收稿日期:2024-08-01 出版日期:2026-02-01
  • 通信作者: 陈龙

Novel classification system and clinical recommendations for distal femoral fracture dislocation

Jianxiong Zhang, Zhenghao Wu, Jiadi Le, Long Chen()

  1. The Second Affiliated Hospital of Wenzhou Medical University, Wenzhou 325026, China
  • Received:2024-08-01 Published:2026-02-01
  • Corresponding author: Long Chen
引用本文:

章建雄, 吴正豪, 乐佳迪, 陈龙. 股骨远端骨折-脱位新分类系统的提出以及临床建议[J/OL]. 中华关节外科杂志(电子版), 2026, 20(01): 116-121.

Jianxiong Zhang, Zhenghao Wu, Jiadi Le, Long Chen. Novel classification system and clinical recommendations for distal femoral fracture dislocation[J/OL]. Chinese Journal of Joint Surgery(Electronic Edition), 2026, 20(01): 116-121.

目的

本研究旨在以股骨远端骨折合并脱位病例的解剖特点为侧重,创建一种更加可靠的分类系统,为临床治疗提供一定的借鉴意义。

方法

纳入温州医科大学附属第二医院2012年8月至2024年1月,因外伤导致股骨髁骨折并伴有膝关节脱位入院,且有完整影像资料(X线+CT)的患者。排除病理性或陈旧性骨折、影像资料不清或缺失、以及随访记录不完整的患者。为了创建骨折脱位分类系统,由1名创伤骨科主任医生以及其他9名创伤骨科主治医生组成的研究员组对90个病例进行讨论,最终建立了新的分类系统。再根据Fleiss kappaCohen’s kappa检验确定了10名独立评价员的观察者间以及观察者内的可靠性,提出临床标准化诊疗方案。

结果

建立的新分类系统分为三类:A类,股骨远端骨折合并髌股关节脱位;B类,股骨远端骨折合并胫股关节脱位;C类,股骨远端Hoffa骨折合并膝关节脱位。研究员组的观察者内一致性均值为κ=0.923,评价员组的为κ=0.931。以新分类系统为基础,获得了临床标准化诊疗流程。

结论

研究表明,新的股骨远端骨折-脱位分类系统对股骨远端骨折具有很高观察者间的可靠性。新分类系统结合骨折和脱位两种损伤,能够处理传统分类系统无法归类的受伤情况,因此这将有助于临床医生更好地交流并选择适当的治疗方案。

Objective

To develop a reliable classification system based on the anatomical characteristics of distal femoral fractures combined with dislocations, thereby providing a reference for clinical management.

Methods

Patients with femoral condylar fractures and knee dislocations caused by trauma, who had complete imaging data (X-ray and CT), were included between August 2012 and January 2024. Those with pathological or old fractures, unclear or missing imaging data, or incomplete follow-up records were excluded. To establish the fracture-dislocation classification system, a research team consisting of one director and nine attending physicians in orthopedic trauma reviewed and discussed 90 cases, ultimately developing a new classification system. Inter- and intra-observer reliability was determined using Fleiss’ kappa and Cohen’s kappa tests by ten independent evaluators, leading to the proposal of a standardized clinical management protocol.

Results

The newly established classification system categorized cases into three types. Type A: distal femoral fracture with patellofemoral joint dislocation; type B: distal femoral fracture with tibiofemoral joint dislocation; type C: distal femoral Hoffa fracture with knee joint dislocation.The mean intra-observer agreement was κ= 0.923 among the ten research team members, and the mean intra-observer agreement was κ=0.931 among the ten evaluators. Based on the new classification system, a standardized clinical diagnostic and treatment workflow was established.

Conclusions

The study demonstrates that the new classification system for distal femoral fracture-dislocations exhibits high inter-observer reliability. By integrating both fracture and dislocation components, this system effectively addresses injury patterns that traditional classifications fail to categorize, thereby assisting clinicians in optimizing workflow and selecting appropriate treatment strategies.

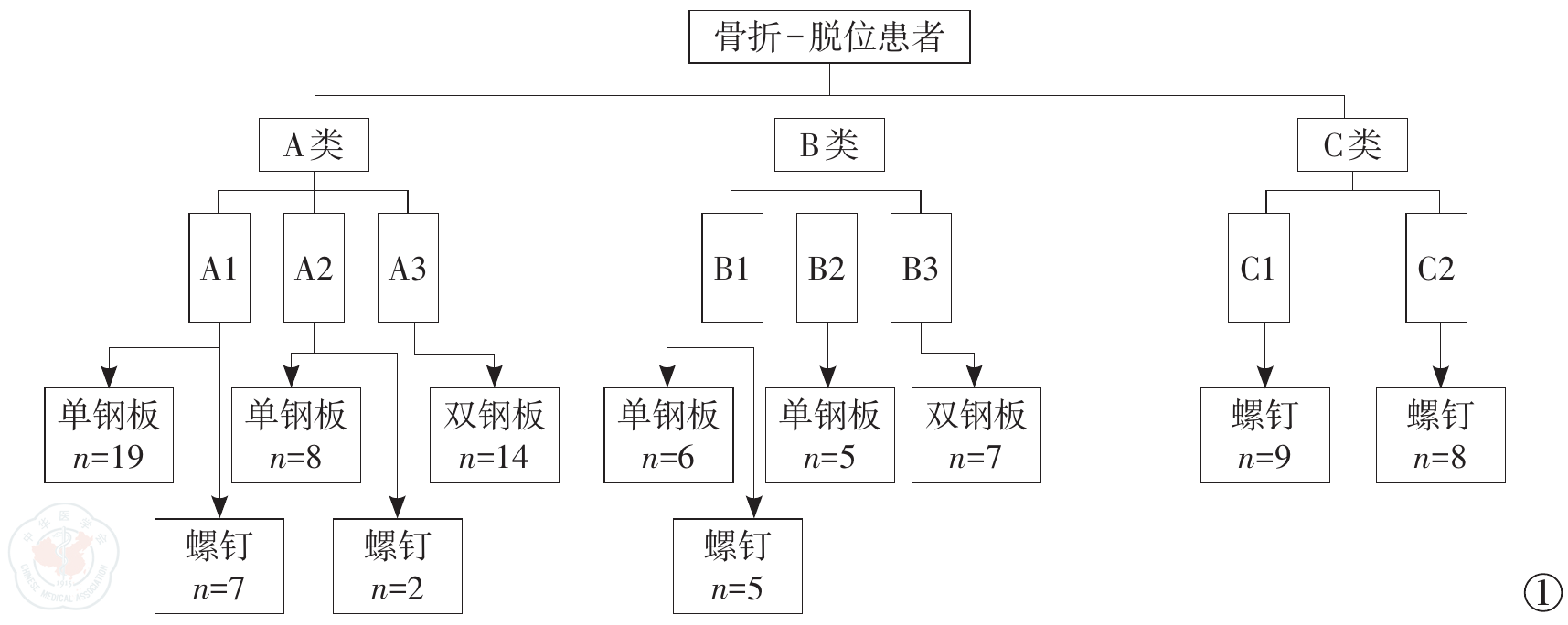

图1 各分类患者的手术方式选择
Figure 1 Choice of surgical approach by classification

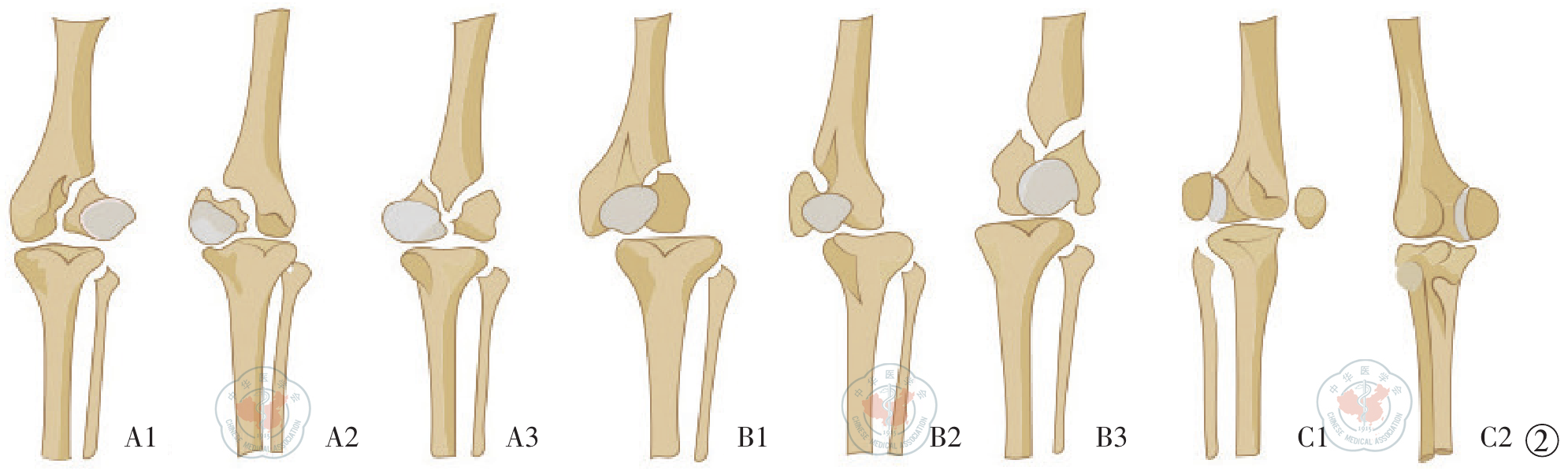

图2 骨折-脱位分类系统示意图
Figure 2 Graphical illustration of the fracture-dislocation classification system
表1 两轮测试新分类系统的观察者间可靠性κ
Table 1 Inter-observer reliability κ values for the novel classification system from two rounds of testing

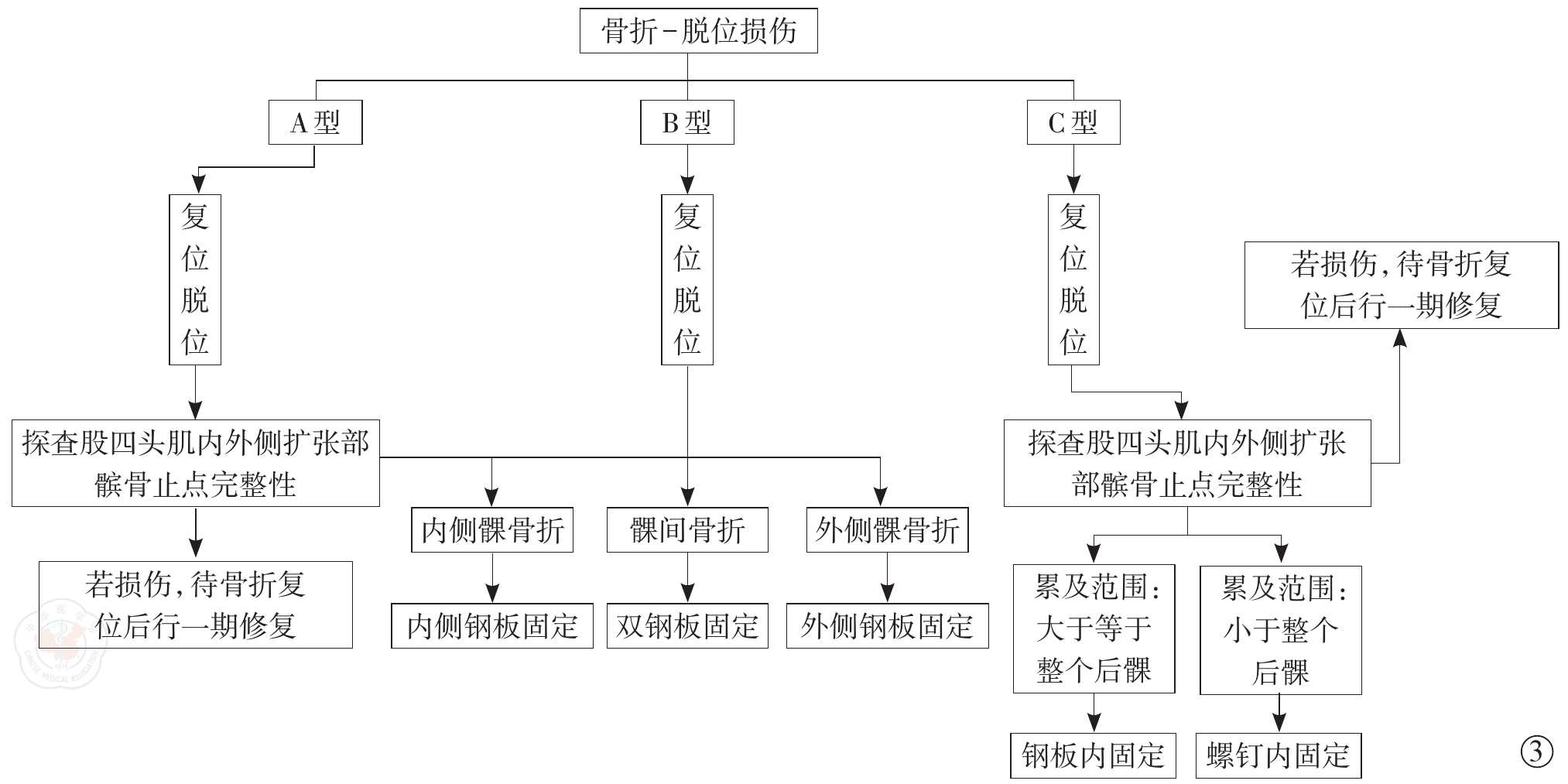

图3 手术流程图
Figure 3 Surgical flowchart
图4 左膝关节X线以及磁共振图像,示股骨远端外侧髁骨折伴髌骨脱位A1亚类。图A为X线侧位片;图B为X线正位片图像;图C为经髌骨的左膝关节MRI轴位图像;图D为经股骨髁的左膝关节MRI冠状位图像
Figure 4 Left knee X-ray and magnetic resonance images, demonstrating a distal femoral lateral condylar fracture with patellar dislocation, subtype A1. A is X-ray image at lateral view; B is X-ray image at anteroposterior view; C is axial MRI image of the left knee through the patella; D is coronal MRI image of the left knee through the femoral condyles
图5 右膝关节CT三维重建图,示股骨远端髁间骨折伴髌骨脱位A3亚类。图A为正位观图像;图B为侧位观图像
Figure 5 Three-dimensional reconstruction of CT images of the right knee, demonstrating a distal femoral intercondylar fracture with patellar dislocation, subtype A3. A is anteroposterior view; B is lateral view
图6 左膝关节MRI图像,示股骨外侧髁骨折伴膝关节脱位B1亚类骨折。图A为经股骨髁的左膝关节MRI轴位图像;图B为经股骨以及胫骨的左膝关节MRI冠状位图像
Figure 6 MRI images of the left knee, demonstrating a lateral femoral condylar fracture with knee dislocation, classified as subtype B1. A is axial MRI image of the left knee through the femoral condyles; B is coronal MRI image of the left knee through the femur and tibia
图7 左膝关节CT三维重建图,示股骨外侧髁Hoffa骨折伴髌骨脱位C1亚类骨折。图A为侧位观图像;图B为正位观图像
Figure 7 Three-dimensional CT reconstruction of the left knee, demonstrating a lateral femoral condylar Hoffa fracture with patellar dislocation, classified as subtype C1. A is lateral view; B is anteroposterior view
[1]
虞惊涛, 茹选良. 股骨远端骨折的处理方法[J/OL]. 中华关节外科杂志(电子版), 2015, 9(5): 663-666.
[2]
Neumann-Langen MV, Sontheimer V, Borchert GH, et al. Outcome evaluation of distal femoral fractures following surgical management: a retrospective cohort study[J/OL]. J Pers Med, 2023, 13(2): 350. DOI:10.3390/jpm13020350.
[3]
Walker REA, McDougall D, Patel S, et al. Radiologic review of knee dislocation: from diagnosis to repair[J]. Am J Roentgenol, 2013, 201(3): 483-495.
[4]
Chong Y, Chang C. A rare case of patella rotational dislocation and incarceration in femoral condyle fracture: a case report[J]. Malays Orthop J, 2022, 16(1): 115-118.
[5]
GantiL,Hanna A. Lateral knee dislocation[J/OL]. N Engl J Med, 2019, 381(21): 2051. DOI:10.1056/nejmicm1904635.
[6]
Bemelman M, van Baal M, Raaijmakers C, et al. An interobserver agreement study with a new classification for rib fractures[J/OL]. Chirurgia, 2019, 114(3): 352. DOI:10.21614/chirurgia.114.3.352.
[7]
Kiran Kumar GN, Sharma G, Farooque K, et al. Locking compression plate in distal femoral intra-articular fractures: our experience[J/OL]. Int Sch Res Not, 2014, 2014: 372916. DOI:10.1155/2014/372916.
[8]
Li Z, Chen Z, Wang X, et al. Locking plate alone or in combination with cannulated screws for Hoffa fractures: a retrospectivestudy[J]. Orthop Surg, 2022, 14(3): 492-500.
[9]
Chen S, Zheng Z, Guo J, et al. Three-dimensional computed tomography mapping techniques in the morphometric analysis of AO/OTA 33A and 33C distal femoral fractures: a retrospective single-center study[J/OL]. Front Bioeng Biotechnol, 2023, 11: 1162214. DOI:10.3389/fbioe.2023.1162214.
[10]
Virk JS. Garg SK, Gupta P, et al. Distal femur locking plate: the answer to all distal femoral fractures[J]. J Clin Diagn Res, 2016, 10(10): RC01-RC05.
[11]
张国豪, 张志强. 过度填充现象在全膝关节置换术中的研究进展 [J/OL]. 中华关节外科杂志(电子版), 2020, 14(02): 212-216.
[12]
Green RN. Irreducible fracture-dislocation of the knee[J]. Acta Orthop Traumatol Turc, 2014, 48(3): 363-366.
[13]
Jiao Y, Suo Y, Chen J, et al. Application of the suture anchor in the treatment of Hoffa fractures of the lateral femoral condyle[J/OL]. J Orthop Surg Res, 2023, 18(1): 512. DOI:10.1186/s13018-023-04005-y.
[14]
Huang C, Fu Z, Wang Q, et al. Treatment of the Hoffa fracture of the lateral femoral condyle with cannulated screws in combination with an anti-gliding steel plate, a retrospective observational study[J/OL]. BMC Surg, 2022, 22(1): 354. DOI:10.1186/s12893-022-01803-9.
